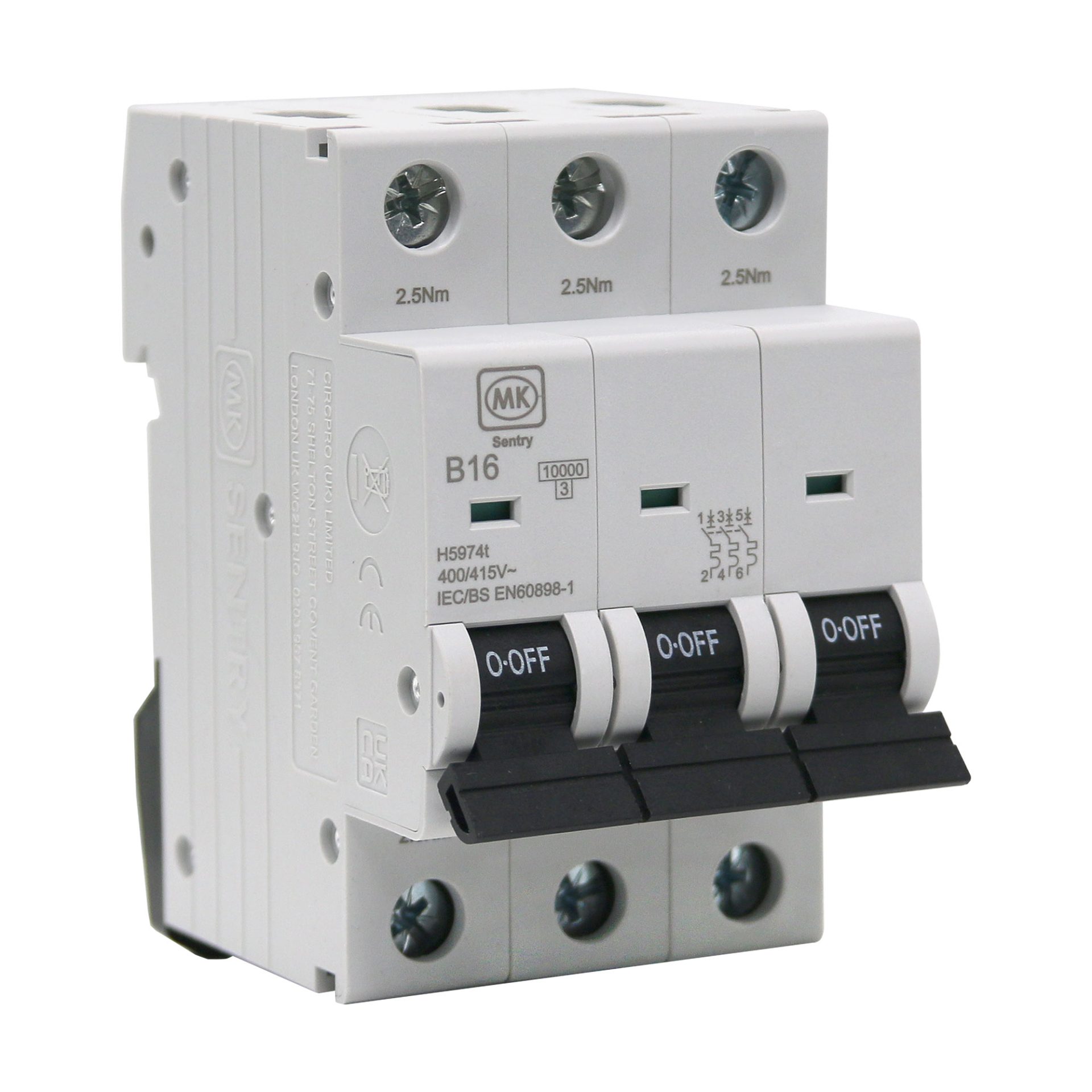

MCB 16A 3P B CURVE 10KA
- Thermo-magnetic, current limiting type
- Available in a range of operating characteristics
- Modular design, DIN rail mountable
- SKU: H5974T
- Categories:10kA circuit breaker, MCB
| Rated Short Circuit Capacity ICN | 10000A |
| Rated Current | 16A |
| Tripping Characteristics | B Curve |
| Number of Poles | 3P |
| Voltage Rating | AC 230V/400V |
| Standard | IEC / BSEN 60898 |
| Energy Limiting Class | 3 |
| Degree of Pollution | 2 |
| IP Rating | Front face IP4X, screw IP2X |
| Product Certification | CB,CE, UKCA |
| Mechanical Durability | 10,000 cycles |
| Ambient Operating Temperature | -5°C to + 55°C |
| Calibration Temperature | +30°C |
| Max. Installation Altitude | 2000 metres |
| Material | PA6 Nylon |
| Dimensions | (height) 83mm x (width)54mm x (depth) 67mm |
| Weight | 0.34Kg |
| Mounting | Din-Rail/Clip On |
| Terminal Capacity | 25mm² |
| Tightening Torque | 3Nm |
