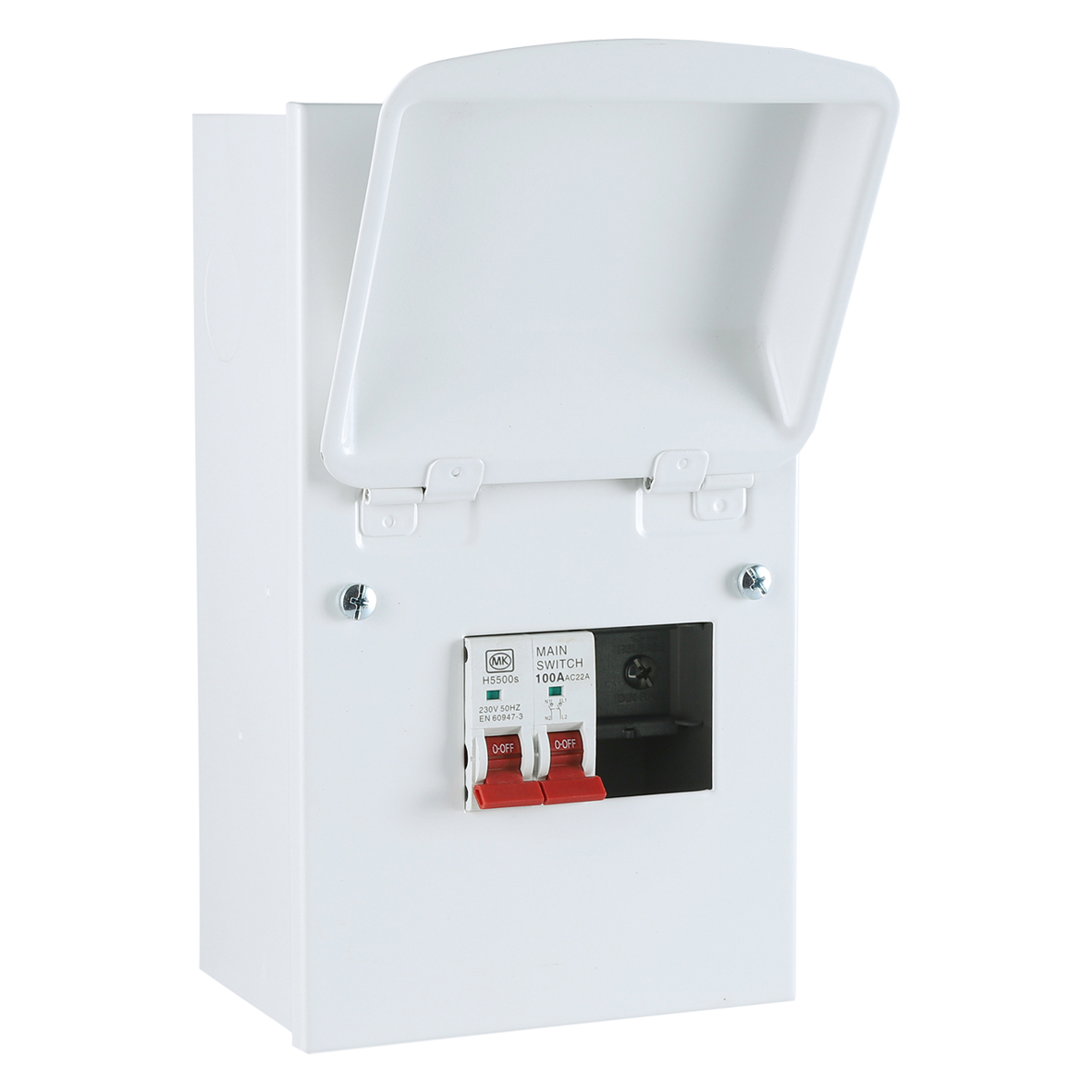

4 Way Metal Consumer Unit With 100A Switch
- Supplied with a 100A main switch, busbar and DIN rail

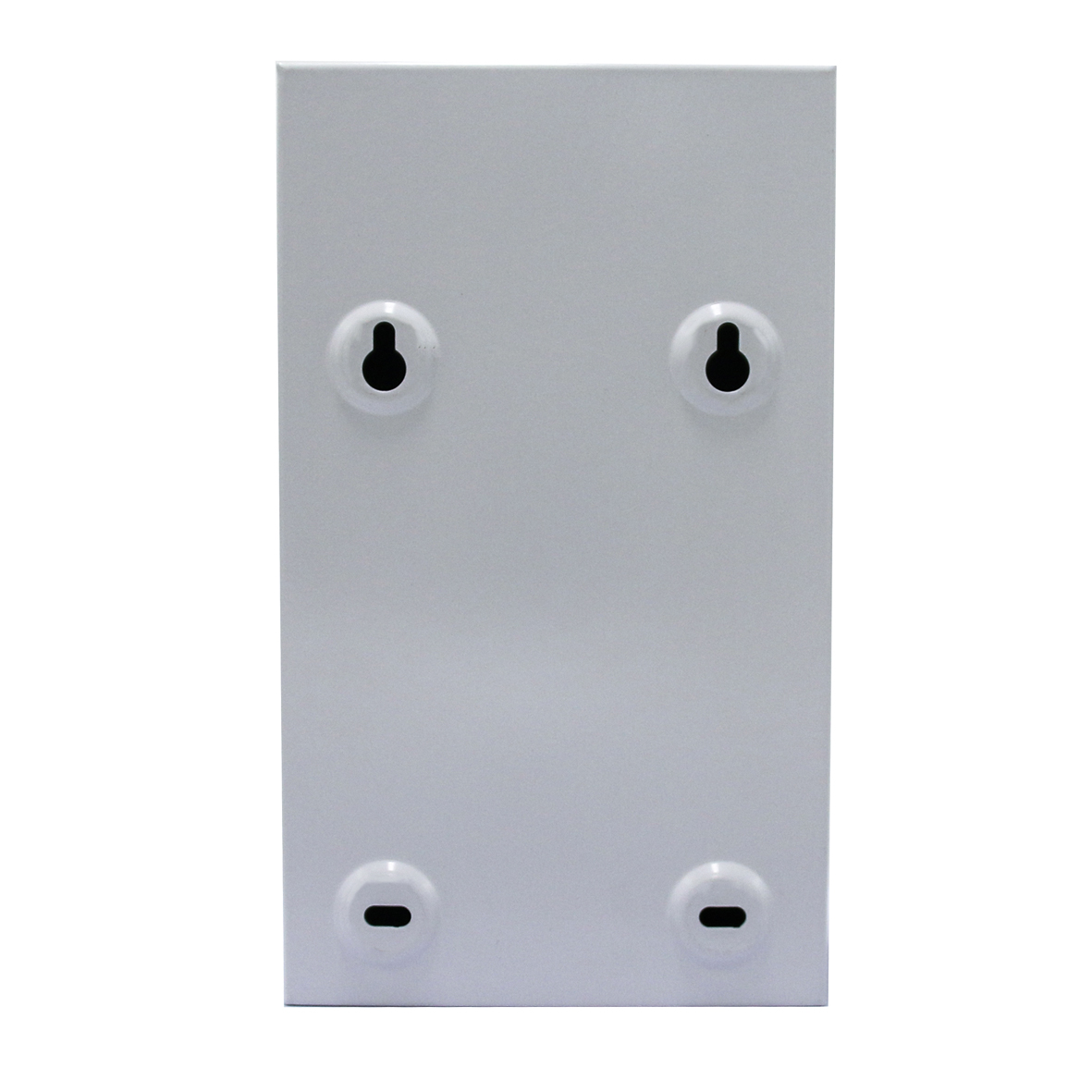

- Rear cable entry, along with top and bottom knockouts
- Commercial and residential application such as office, home and buildings
- SKU: Y5704sMET
- Categories: Metal consumer unit
| Height | 244mm |
| Width | 144mm |
| Depth | 116mm |
| Weight | 2.1kgs |
| Short Circuit Rating | 16kA |
| Terminal Cable Capacity | 16mm² earth and neutral |
| Torque | 2.5Nm |
| Mounting | Din-rail |
| Guarantee | 5 years for enclosure, 10 years for devices |
| Frequency | 50Hz |
| Rated Operational Voltage | 220-250V |
| Rated Insulation Voltage | 300V |
| Busbar Rating | 100A |
| Cable Entry | Selection of Knockouts |
| Cable Clamp | Cage Clamp |
| Rated Operated Voltage | 230/400V AC |
| Number of Ways | 4 ways |
| Protection Class IP Rating | Front face IP4X, IP3X sides |
| Max. Installation Altitude | 2000 metres |
| Pollution Degree | 2 |
| Material | Steel |
| Finish | Powder Coated |

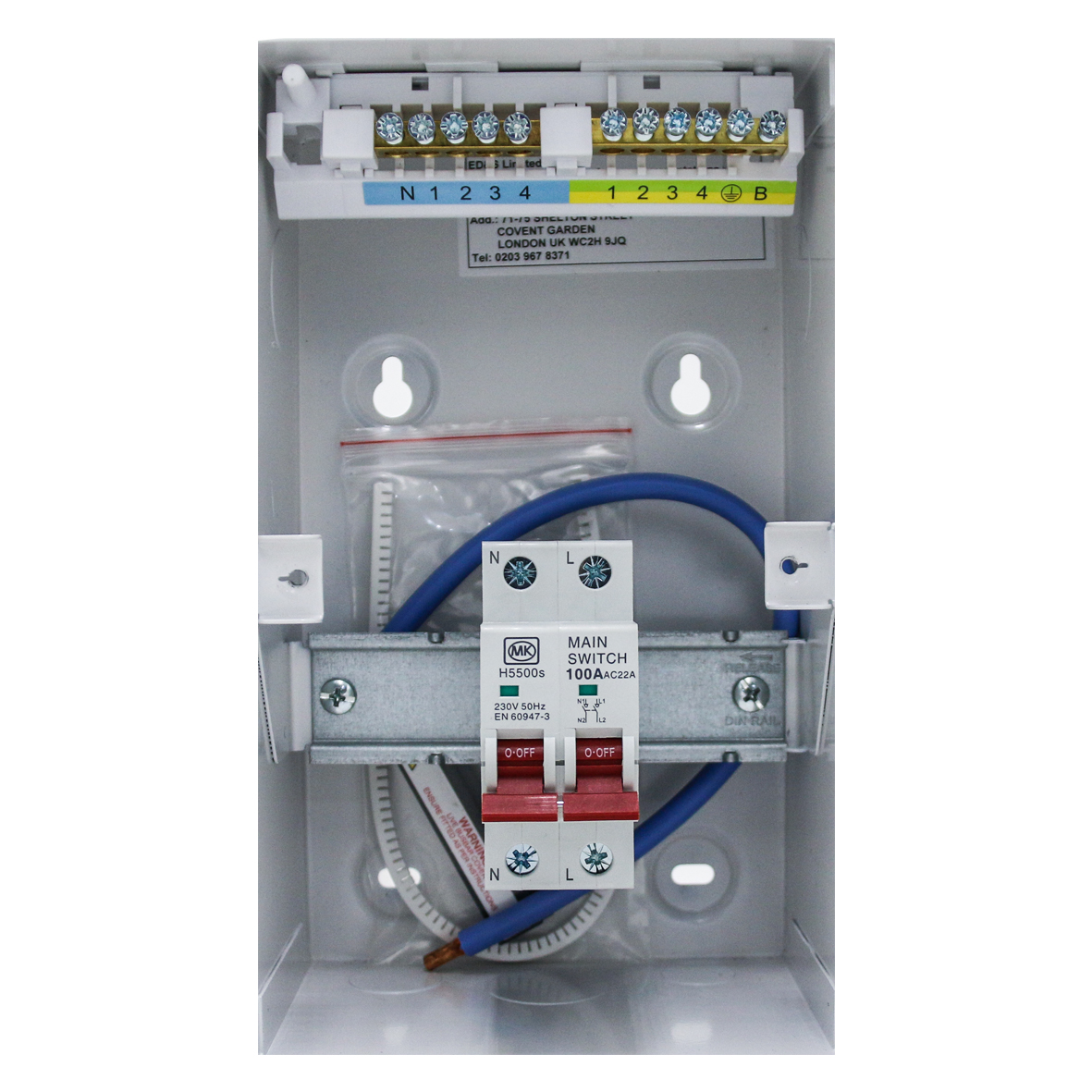

| Installed Device | 100A Main Switch DP X 1pc |
| Cable | Pre-wiring |
