16 Way Metal Consumer Unit With 100A Switch 2 X 100A 30mA RCD Type A 8 X MCB

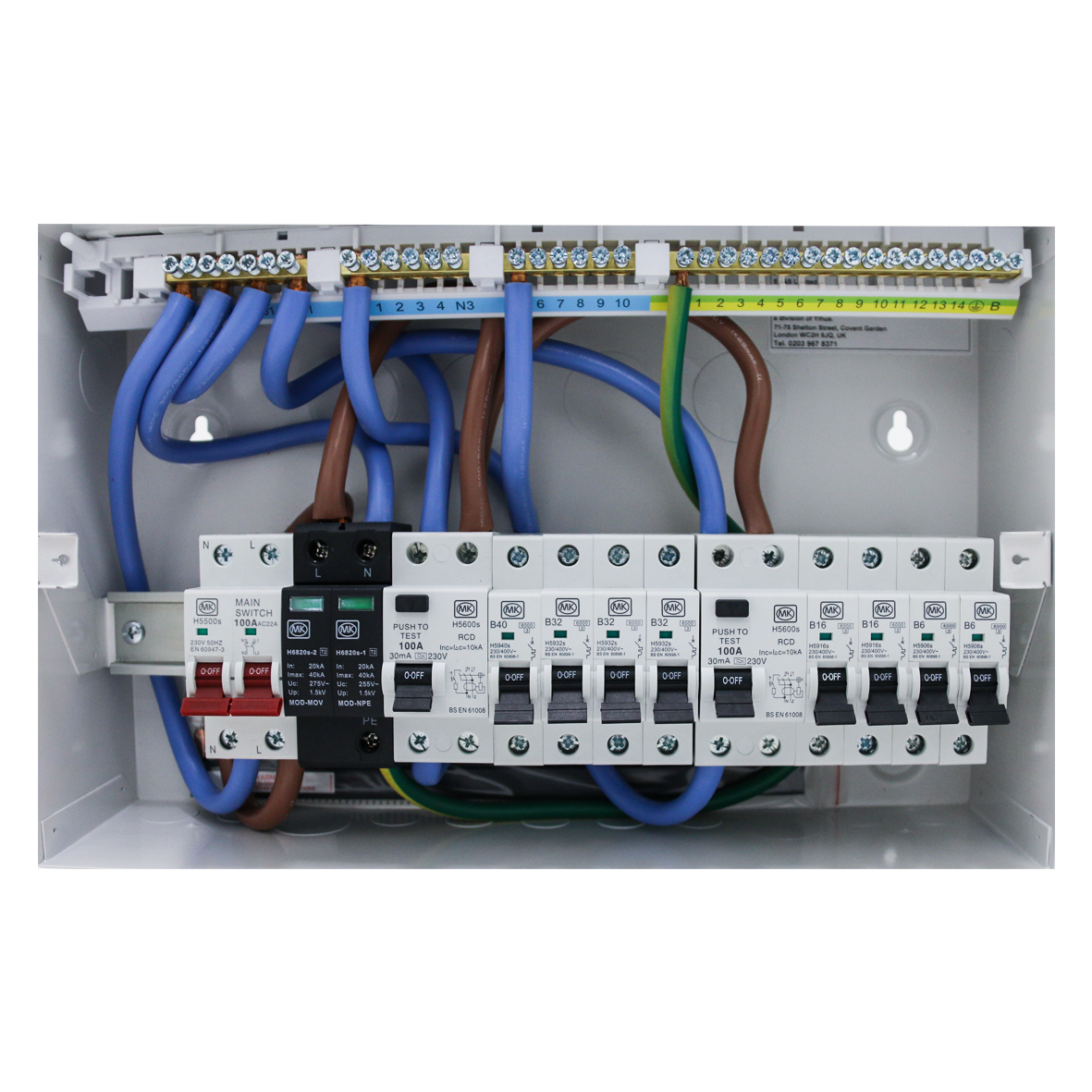

  • Complete with fully fitted and pre-wired a switch, 8 MCBs and 2 RCDs

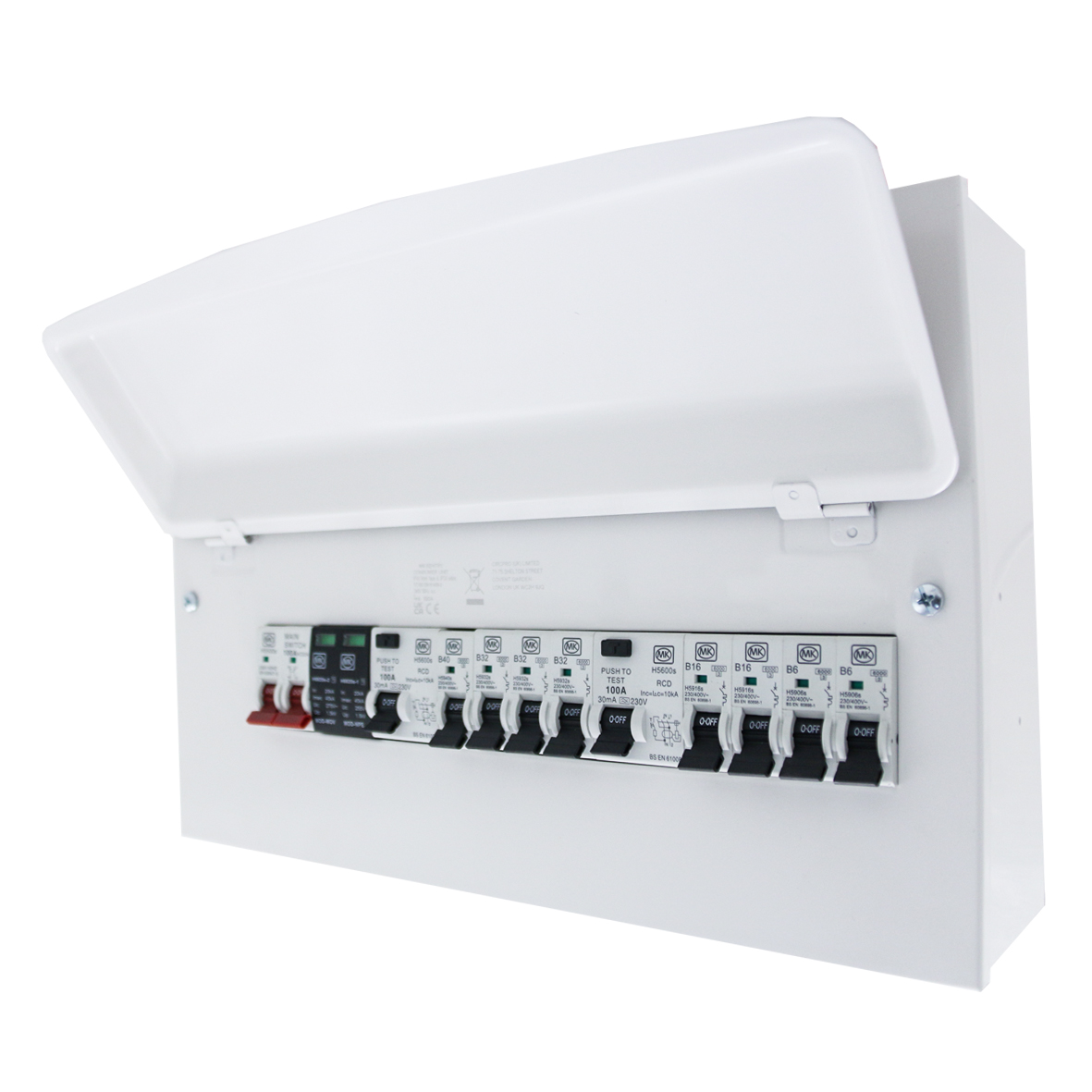

  • Fully enclosed metal construction body with drop-down metal cover
  • BS 7671 Amendment 3 and BS EN 61439-3 compliant
  • For home buildings mainly.
  • SKU:  Y8665sMET
  • Categories: Metal consumer unit

Specification

Download

Height 244mm
Width 382mm
Depth 116.10mm
Weight 5.9kgs
Short Circuit Rating 16kA
Terminal Cable Capacity 16mm² earth and neutral
Torque 2.5Nm
Mounting Din-rail
Product Lifetime 10 Years
Frequency 50Hz
Rated Operational Voltage 220-250V
Rated Insulation Voltage 300V
Busbar Rating 100A
Cable Entry Selection of Knockouts
Cable Clamp Cage Clamp
Rated Operated Voltage 230/400V AC
Number of Ways 16 ways
Protection Class IP Rating Front face IP4X, IP3X sides
Max. Installation Altitude 2000 metres
Pollution Degree 2
Material Steel
Finish Powder Coated
Installed Device 100A Main Switch DP X 1pc
RCD 63A Type A 30mA DP X2pcs
MCB 6kA SP X8
Surge/SPD DP T2 X1
Cable Pre-wiring
The MK Circuit Protection Metal Consumer Unit is a high-quality electrical solution designed for circuit protection in homes and offices. Known for its durability and versatility, this 16-way unit is a popular choice among electricians and homeowners alike. The YS8666s configuration offers a comprehensive setup, including:
  • 1 x Main Switch/ Isolator
  • 1 x 2P T2 SPD (Surge Protection Device) to protect against voltage surges.
  • 2 x 100A RCDs (30mA, Type A) for residual current protection.
  • 6 x 6kA B Curve MCBs (Miniature Circuit Breakers) for over-current protection.
For those with specific project requirements, MK also offers empty enclosures and individual circuit breakers, allowing electricians to customise configurations based on the installation. This flexibility ensures adaptability across a wide range of applications. All MK products, including the Metal Consumer Unit, are certified with CE, UKCA, and CB, ensuring compliance with UK and international safety standards. The units are designed to meet British wiring regulations (BS7671), providing peace of mind for both installers and end-users. Durability is a key feature, with the consumer unit constructed from 100% steel for fire resistance and dust-proof performance. MK backs its circuit breakers with a 10-year warranty and the enclosure with a 5-year warranty, reflecting the brand’s commitment to quality and reliability. In summary, the MK Metal Consumer Unit combines robust construction, advanced protection features, and compliance with safety standards. Whether pre-configured or customised, it is a dependable choice for efficient and safe electrical distribution in homes and offices.
